Spokes With Nipples

• Stainless Spokes
• Nipples Included
• Single-butted

E-BikeKit Front 500-1000w E-BikeKit Geared Motor – The best electric bike kit wheels built in the USA!

Description

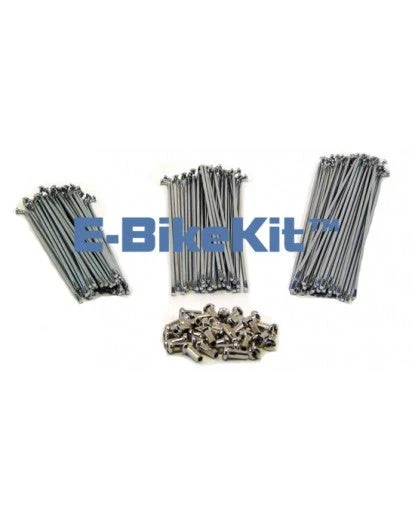

E-BikeKit Spokes

Stainless steel spokes and silver-colored brass nipples. 12 gauge and single butted (to 13 gauge) at the threads.

Available for all E-BikeKit rim and hub combinations.

Price is for 1 spoke and 1 nipple only. All E-BikeKit rims and hubs use 36 spokes.

Building wheels is an art and should be done by experiences professional wheelbuilders only. We cannot provide support for inexperienced wheel builders. The rims and spoke sets being sold here are specific to one another (EBK eyeletted rims and the spoke lengths offered by E-BikeKit work together). You should not buy these spokes to use with another rim unless you are 100% certain of the spoke length.

**For use with E-BikeKit™ eyeletted rims and hub motors only. If you are unsure about what you are ordering please call customer service before ordering. Rims and spokes are non-refundable and all sales are final.

Please note that we have used 2 different hub-shells for our 500w geared motors. Make sure you are getting the right spokes! See here for details: GRD-500w Motor identification.



new/small 16″ lacing (radial):

16” FRONT

• Head out (normal) both sides
• 66mm left (disc) side head out (normal) – 13g nipple
• 72mm right side head out (normal) – 13g nipple

16” REAR

• 72mm left (disc) side head out (normal) – 13g nipple
• 66mm right (drive) side head in – 13g nipple

DD = Direct Drive Motor

GRD = Geared Motor
