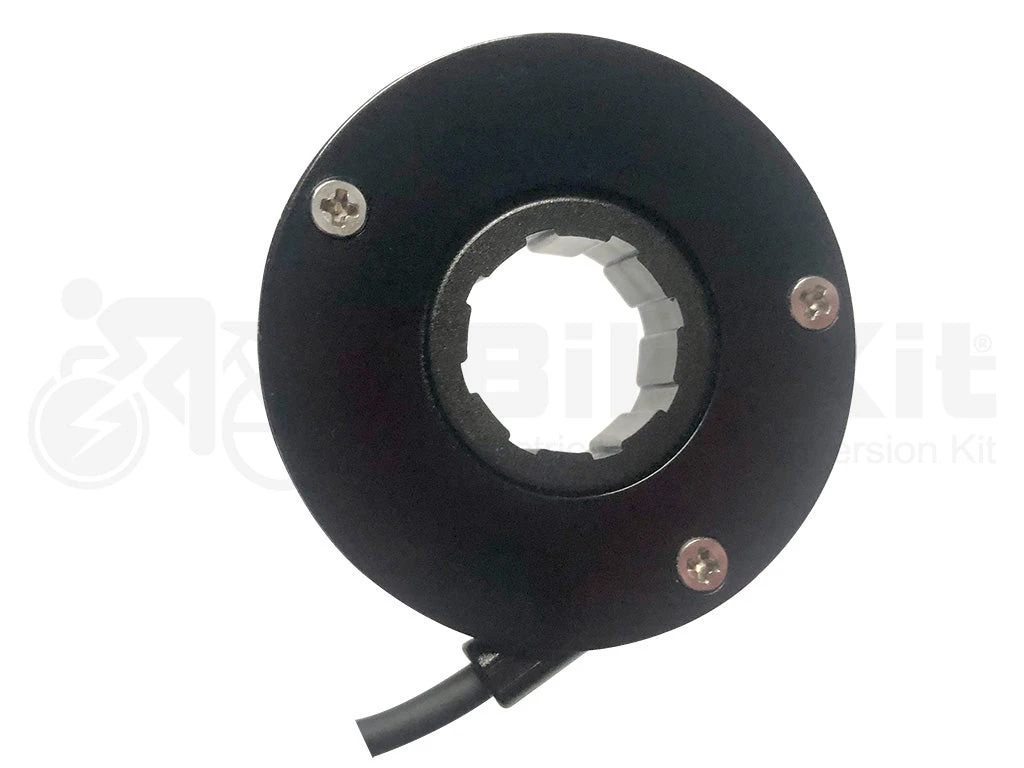

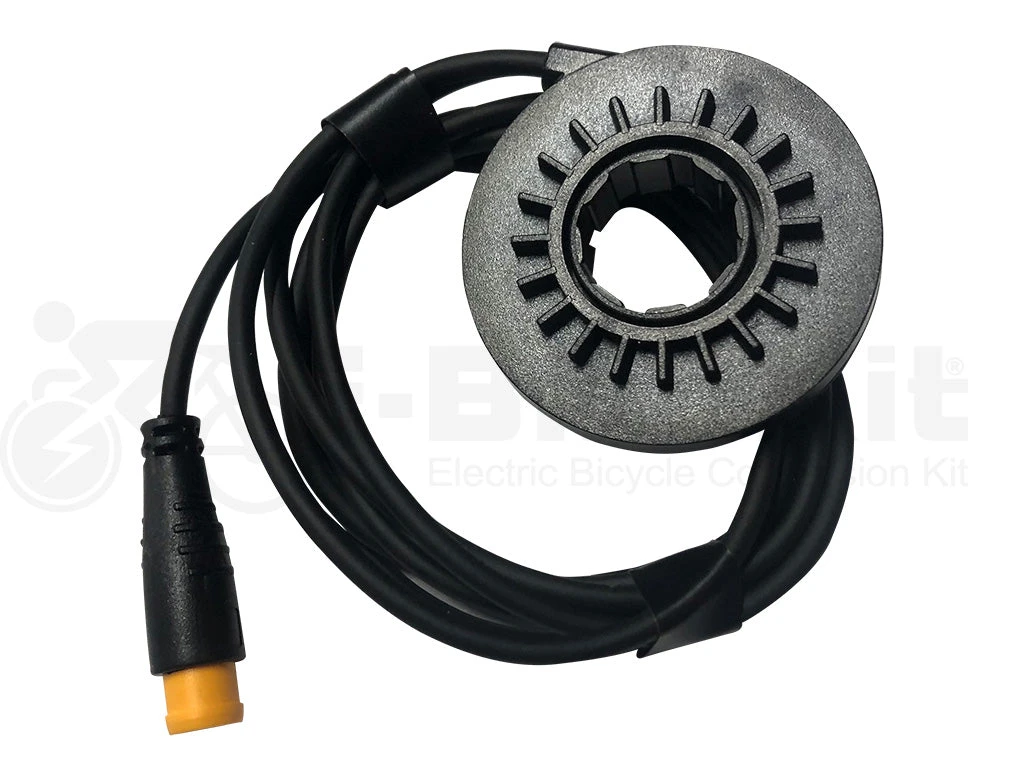

Mini III PAS Left-Side Sensor

• DIN Push-In Connector
• PAS Sensor – Left Side Mount (Non-Drive Side)
• For Latest E-BikeKit Model

Description

E-BikeKit™ PAS Sensor

The Mini III senses pedaling cadence to run the motor in PAS sensor mode. Use in conjunction with a throttle for throttle over-ride.

* Hall Type, 5 volt

• For use with square taper bottom brackets with internal splines.  This will not work with square taper bottom brackets where the thickest part of the shaft is greater than 15.6mm.
• Fits current model Eco-Tad, Fat-Tad, EZ-3 USX HD, and T3 CX Trikes, as well as other models of trikes with square taper bottom brackets with internal splines.

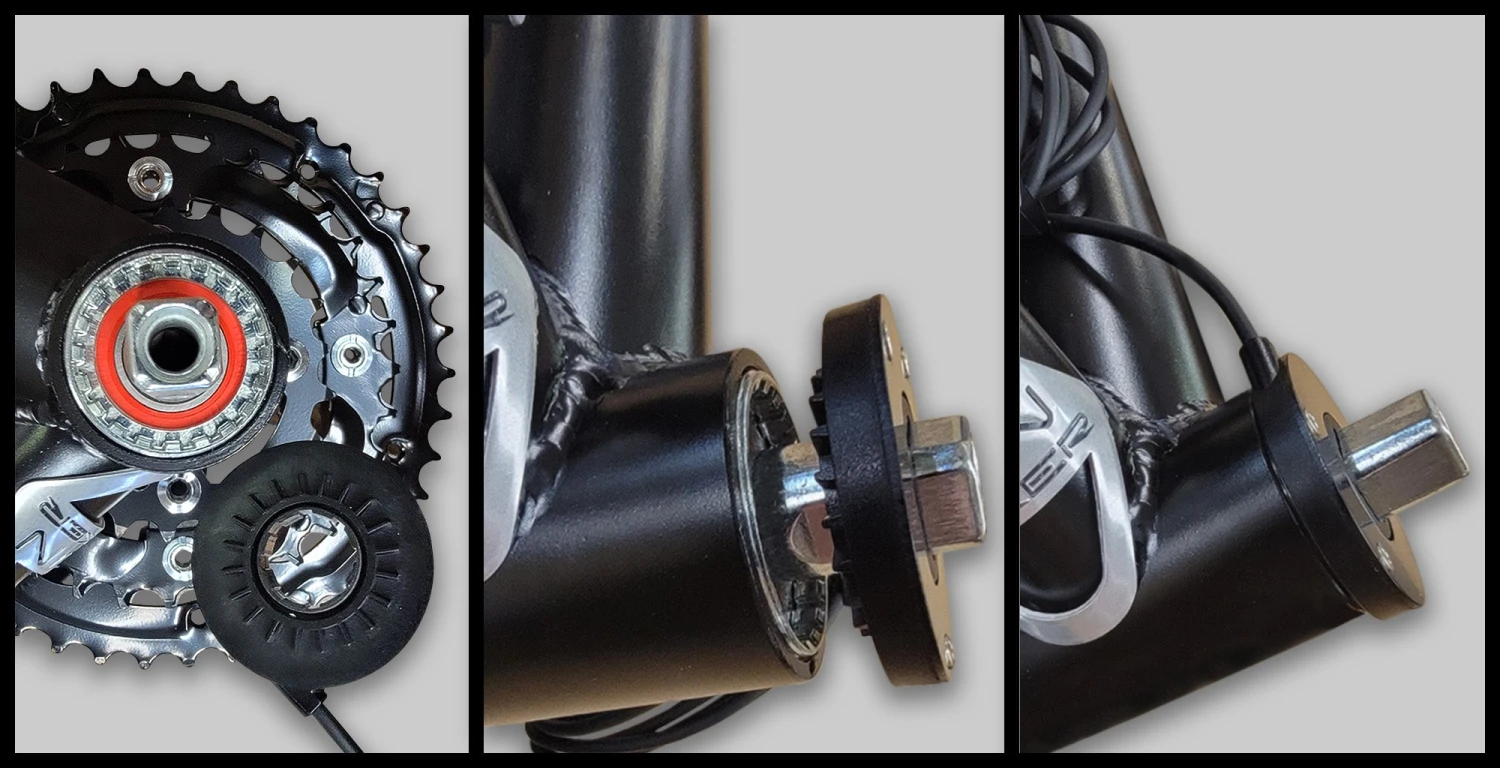

• Requires the removal of the left crank arm.
• Does not require a PAS magnet.
