Heavy-Duty E-BikeKit™ Lithium – Rear Wheel

• Best for Heavy Riders And Cargo
• 20 Mph @48v / 15-30 Mile Range
• Pedal-Assist and Throttle-on-Demand





Description

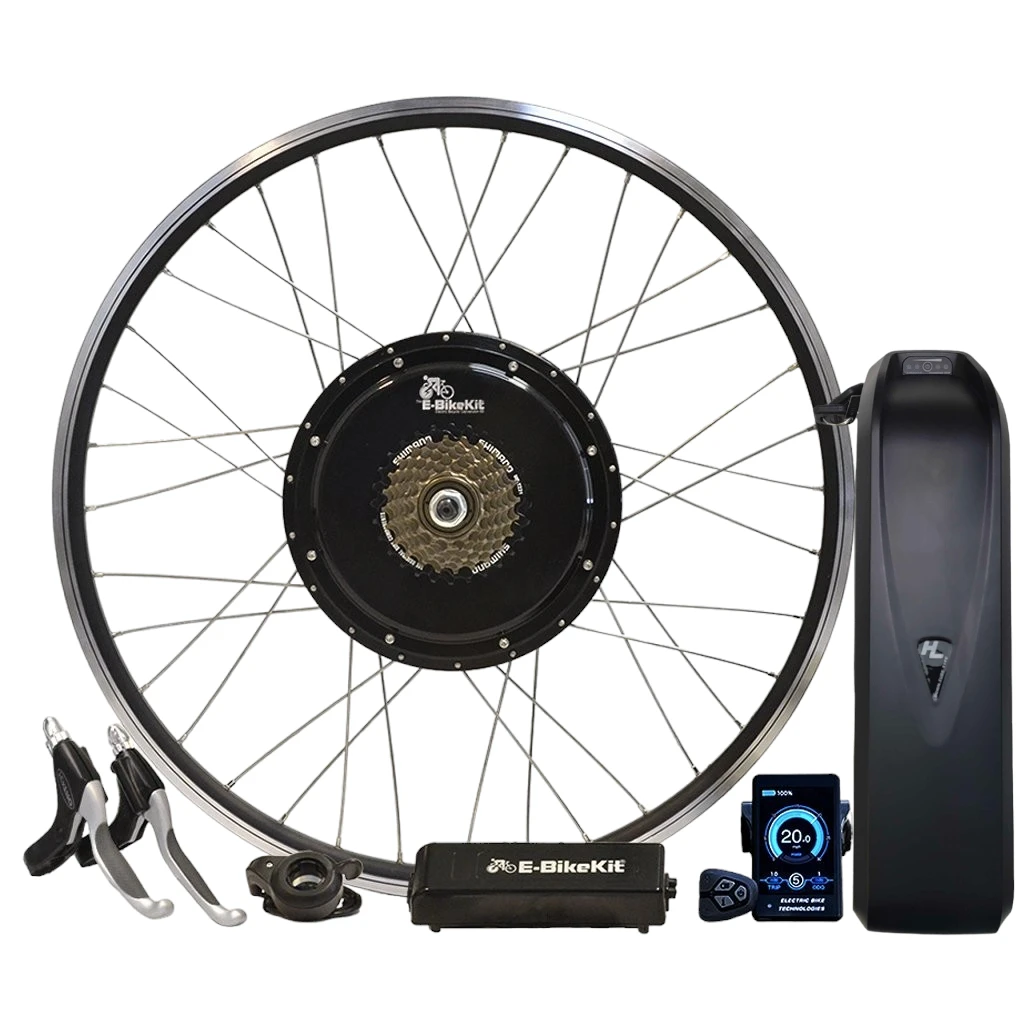

E-BikeKit Rear 500w Direct-Drive Hub Motor Conversion Kit with 48 Volt Li-ion Battery Pack and Charger.

This premium electric bike conversion kit system is for riders that require the increased durability of a direct-drive motor for heavier loads and the long term reliability of a lithium battery. The direct-drive hub motor used in this conversion kit system is for heavier applications and a MUST for any total load (bike+rider+cargo) of 300 lbs. or more. This system pairs the heavy-duty motor with a 48v battery pack with a 20 mph top speed for increased torque.

Direct-drive motors are strong, durable, and long-lasting due to zero internal friction. Some lower quality or larger direct-drive motors have resistance, but that should not be a concern with this E-BikeKit direct-drive hub motor.

Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility

Helpful Resources: Helpful Videos | Owner’s Manuals

Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.

Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday 9 am – 5 pm EST. Outside of business hours get help fast via e-mail.

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and are require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.





Motor Specs

Brand: Electric Bike Technologies, Inc.
Type: Direct-Drive (brushless, disc brake compatible)
Power: 500w nominal / > 1000 @48v
Max Torque: 46N-m @48v
Max RPM: 259 @48v
Cable: 8″ Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 19/32″ (10.4mm)
Weight: 12.8 lbs. (5.8 kg)
Warranty: 1 Year (up to 48v – 600 lbs. max load)





Battery Specs

Range: 15-30 Miles (Based on riders weight, input and terrain contingent)
Charging Time: 15Ah Pack = 5 Hours / 3Amp Charger
Nominal Voltage: 48v
Nominal Capacity: 15Ah (0.2C)
Battery Energy: 720Wh approx.
Dimensions: 14in x 3.5in x 5in (356mm x 89mm x 127mm) approx.
Total Weight: 10.125 lbs (4.6 kg)
Cell Assembly: 18650-3.6v-13S4P
Life Cycles: 500-800 Cycles
Max. Continuous Discharge: 16A
BMS Protection Current: 20A
Discharge Cut-Off Voltage: 37.5v
Max Charge Voltage: 54.6v
Inner Resistance: < = 230mΩ
Operation Temperature Range: Charge: 0°C – 113°F / Discharge: -68°F – 140°F
Storage Temperature: 0°C – 104°F (Extended Storage: 59°F – 77°F)
Battery Case Material: Plastic
Limited Warranty: 1 Year
Certificates: UN38.3; MSDS; Cells DMGC INR 18650-26E UL1642,2580





Includes

Every E-BikeKit conversion kit comes with all of the parts you’ll need for your conversion.

1 x USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
1 x 48V Compatible 22Amp 12FET Controller
1 x Programmable LCD Dashboard
1 x PAS 12-Magnet Split Disc
1 x PAS Sensor Left Side Mount (right side mount by request)
1 x Thumb or Split-Twist Throttle
1 x Left and Right E-Brake Levers
1 x Motor Cable
1 x Accessory Cable
1 x Battery Wire Harness (kits w/ out batteries only)
1 x Freewheel (rears only)
1 x Battery
1 x Battery Charger
1 x Owner’s Manual (an online PDF)
**Zip Ties, C-Washers, and Torque Arms in Every Kit!
