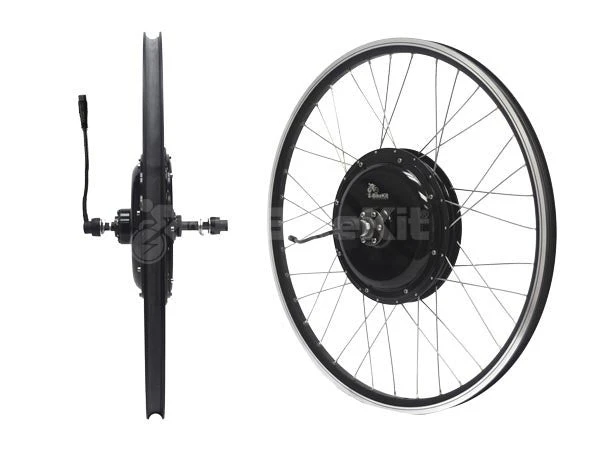

Front 500-1000w Heavy-Duty   E-BikeKit Direct-Drive Motor Wheel Only

• Heavy-Duty Motor
• Stainless Spokes
• Eyeletted Double-Wall Rim

E-BikeKit Front 500-1000w E-BikeKit Gearless Motor The best electric bike kit wheels built in the USA!

Description

Electric Bike Conversion Kit – Wheel ONLY
REAR Direct-Drive Hub Motor Wheel 500-1000w

E-BikeKit™ electric bike hub motor wheels are built using double-walled “eyeletted” rims, 12 gauge stainless steel spokes and brass nipples.

Every wheel is built in the USA by an expert wheelbuilder.

Requires motor cable for use with 2013-2015 E-Bike and E-Trike Kits that use an LCD screen. This is a 66″ cable with mating connector to the hub motor. On the opposite end is a connector to the E-BikeKit controller. E-BikeKit parts are made to work together. E-BikeKit does not provide technical support for use of it’s parts with other e-bike kits/systems/e-bikes.

---

Wheel Size: Can be found on your tire sidewall
Wheels are built to order: 20″, 24″, 26″, 700c, and 29er available
Tire Width: 1.15″(29mm) – 2.25″(57mm) will fit

Bike Compatibility: Will this work on your bike?
Motor Types: Direct-Drive or Geared – A side by side comparison
Front vs. Rear Wheel: Advantages & Disadvantages
Disc Brakes: Buy thin-profile disc-brake calipers HERE!

---

Hub Motor Specifications:

Motor Type: Direct-Drive Hub Motor (ISO disc brake compatible)
Power: Direct Drive = 500-1000w peaks
Top Speed: 14-19 mph (contingent on battery and motor combination)
Weight: Direct-Drive 14 lbs.
Warranty: 500w Direct-Drive Hub Motors – 1 year.

---

TOP SPEEDS

Wheel Size/Motor Type	TOP SPEED AT 36 Volts	TOP SPEED AT 48 Volts
20″/500w Direct-Drive	14 MPH	18 MPH
24″/500w Direct-Drive	14 MPH	18 MPH
26″/500w Direct-Drive	15 MPH	19 MPH
700c/500w Direct-Drive	15 MPH	19 MPH

Please be aware: When used at 48 volts, the system is capable of speeds that exceed Federal Electric Bike Laws and your e-bike may become classified as a “motor vehicle”. *Laws and rules may vary by state, city and county. Check with your local DMV regarding electric bike laws in your area. Rider is responsible for researching and abiding by the existing laws in his or her area, Electric Bike Technologies LLC will not be held accountable.

---

If you would like help determining which hub motor and battery combination is right for you, please call us toll free at 1-866-882-3245 and an experienced professional salesperson can assist.

Motor Specs

Brand: Electric Bike Technologies, Inc.
Type: Direct-Drive (brushless, disc brake compatible)
Power: 500w nominal / > 1000 @48v
Max Torque: 46N-m @48v
Max RPM: 259 @48v
Cable: 8″ Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round “3-Pin” / 9-Pin 14.7mm
Weight: 12.8 lbs. (5.8 kg)
Warranty: 1 Years (up to 48v – 600 lbs. max load)
