E-TrikeKit™ No Battery

• Designed for Adult Upright Trikes
• Pedal-Assist and Throttle-On-Demand
• Programmable LCD Dashboard

Description

E-TrikeKit Adult Tricycle Conversion Kit with Heavy-Duty (Low Speed / High Torque) 500w Direct-Drive Hub Motor.

The E-TrikeKit electric tricycle conversion kit without a battery pack is specifically made with increased pulling power for heavier adult tricycles. The direct-drive hub motor is designed to deliver more low-end torque and a lower top speed; important for safety on a 3-wheeler. This kit without battery gives you the option of supplying your own 36 or 48-volt battery pack.

Who’s it for? This kit is built specifically for upright adult tricycles. The heavy-duty direct-drive motor is designed for increased torque and a lower top speed. This kit also has a speed-limited reverse (30% of forward top speed).

The E-TrikeKit™ is designed specifically for adult tricycles.
Includes our LCD dashboard display, 36v/48v 12FET controller, speed-limited reverse function, and locking e-brake handles, the system is easy to install and operate and gives the rider total control over top speeds and power output. This trike specific conversion kit allows you to turn any conventional 3-wheel adult tricycle into an electric-assisted adult mobility tricycle.

Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility

Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.

Helpful Resources: Helpful Videos | Owner’s Manuals

Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday 9 am – 5 pm EST. Outside of business hours get help fast via e-mail.

Motor Specs

Brand: Electric Bike Technologies, Inc.
Type: Direct-Drive (gearless, brushless, disc brake compatible)
Power: 500w Nominal / > 750w @36v
Cable: 8″ Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 5/8″ (14.7mm)
Weight: 13 lbs. (5.90 kgs)
Warranty: 1 Year (up to 48v – 600 lbs. max load)

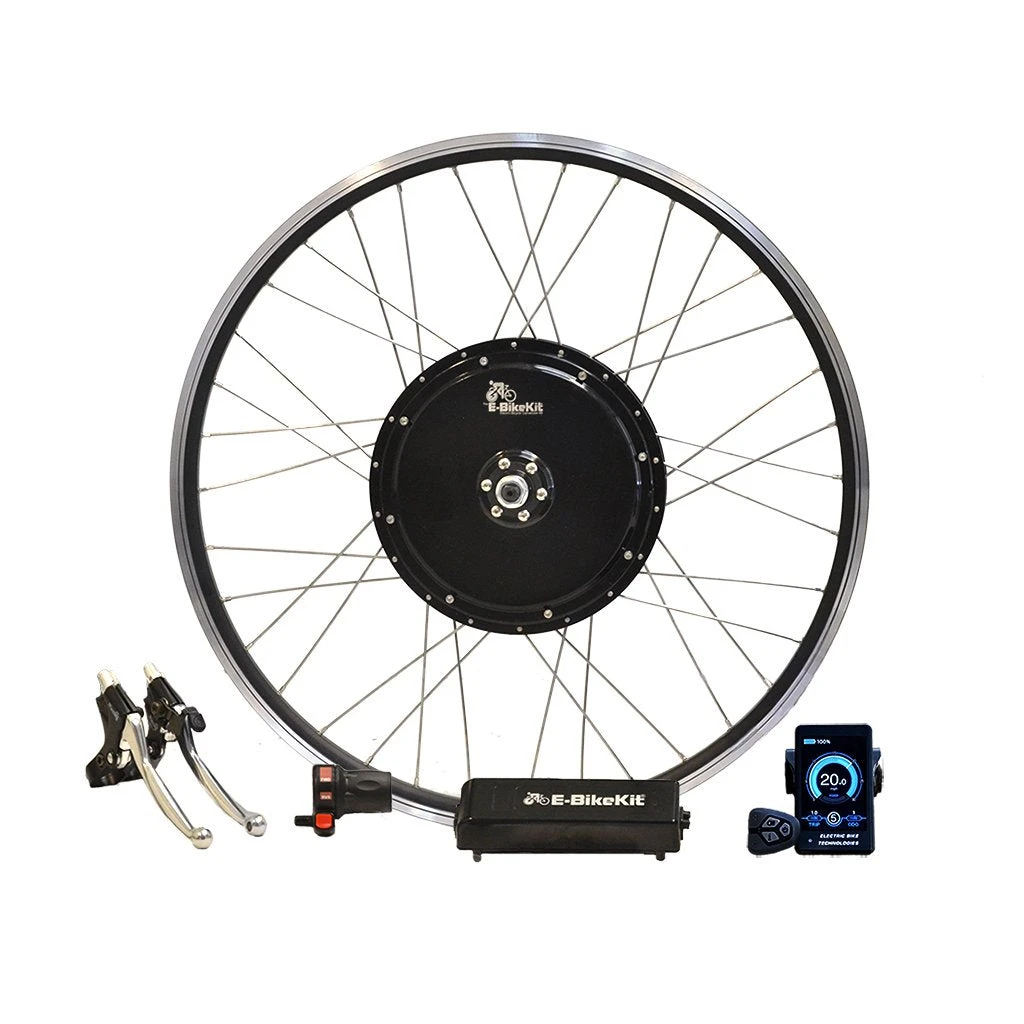

Includes

Every E-TrikeKit conversion kit comes with all of the parts you’ll need for your conversion.

1 x USA Hand-Built Wheel w/ Disc-Brake Compatible Hub Motor
1 x 48V Compatible 22Amp 12FET Brushless Motor Controller
1 x Programmable LCD Dashboard
1 x PAS 12-Magnet Split Disc
1 x PAS Sensor Left Side Mount (right side mount by request)
1 x Split-Twist Throttle w/ Reverse Button
1 x Left and Right Locking E-Brake Levers
1 x Motor Cable
1 x Accessory Cable 4-1
1 x Battery Wire Harness (kits w/o batteries only)
1 x Owner’s Manuals (online as a PDF)
**Zip Ties, C-Washers, and Torque Arms in Every Kit!
