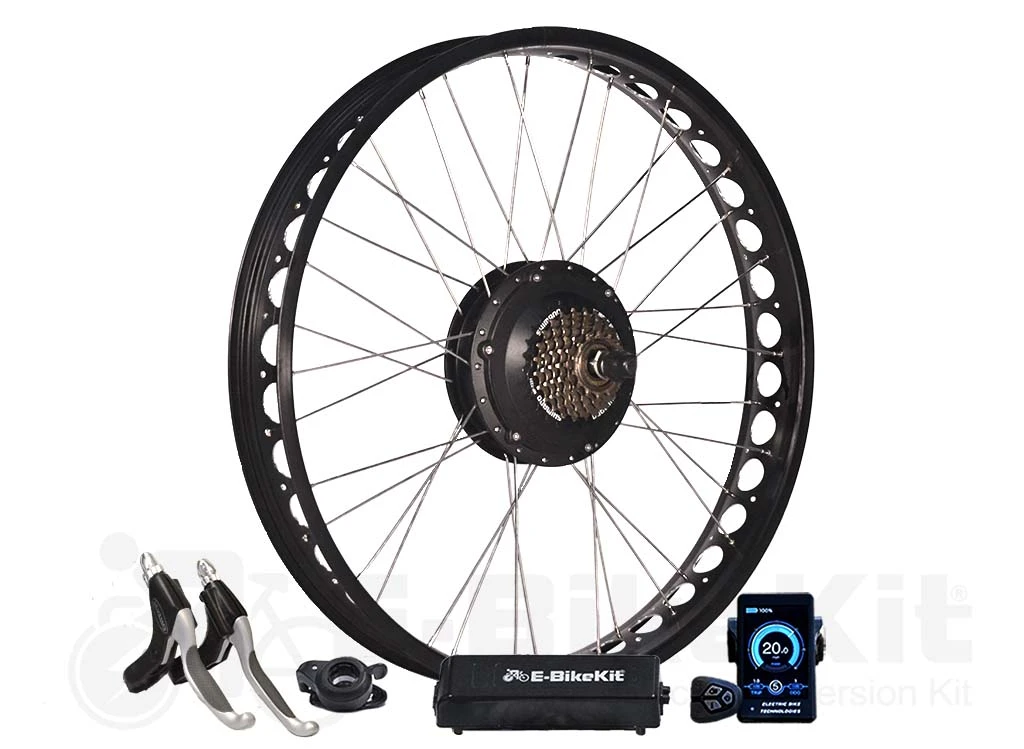

E-BikeKit™ Fatbike No Battery – Rear Wheel

• Purpose Built for Fat Bikes
• Use Your Own Battery
• 36v or 48v Battery Compatible





Description

E-BikeKit Rear 750-1000w Geared Hub Motor Conversion Kit for Fat Bikes

The E-BikeKit 750-1000w geared conversion kit is powered by an internal 5:1 planetary gear hub motor with a clutch. The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with “start/stop” riding), has more starting torque, and has greater hill-climbing ability than a direct drive motor of equal power rating. The motor is also smaller in diameter for increased stealth and 3.4 lbs lighter than the 500w direct drive.

Dropout Spacing: This hub is spaced to 170mm w/ 15mm disc-offset for fat bike rear wheels. We can also space it to 190mm for use without a disc brake. If you have a bike that uses a rear disc brake and 190mm spacing, we can include disc rotor shims and screws to help line the disc up for 15mm disc offset.

Who’s it for? This kit is for anyone wanting the best of the best in performance, efficiency, weight, and stealth. There is a 300 lbs total load limit so if you plan on more than that, look to a heavy-duty system.

---

Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility

Questions? Call Toll-Free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday 9 am – 5 pm EST. Outside of business hours get help fast via e-mail.





Motor Specs

Brand: Electric Bike Technologies, Inc.
Type: Internally Geared (Brushless, and disc brake compatible) Fat Bike Motor
Power: 750w Nominal  / 1000w Peak @ 48v
Max Torque: 75Nm @ 36v / 84Nm @ 48v
Max RPM:259 @ 36v / 320 @ 48v
Cable: 8″ Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32″ (10.4mm
Weight: 17 lbs (4.26 kg)
Warranty:1 Year (up to 48v w/ 300 lbs max load)





Includes

Every E-BikeKit conversion kit comes with all of the parts you’ll need for your conversion.
• USA Hand-Built Wheel with a Disc-Brake Compatible Hub Motor
• 36/48V Compatible 22Amp 12FET Controller
• Programmable LCD Dashboard
• PAS 12-Magnet Split Disc
• PAS Sensor Left Side Mount (Right side mount by request only)
• Thumb or Split-Twist Throttle
• Left and Right E-Brake Levers
• Motor Cable
• 3-to-1 Accessory Cable
• Battery Wire Harness (Only included if there’s no battery kit)
• Freewheel (Only for rear E-BikeKits)
• Zip Ties, C-Washers, and Torque Arms in Every Kit!
