E-BikeKit™ Fatbike Lithium – Rear Wheel

• Purpose-Built for Fatbikes
• 26 Mph / 10-25 Mile Range
• 48v 15Ah Li-ion Battery





Description

E-BikeKit Rear 750w Geared Hub Motor Conversion Kit for Fatbikes with 48v Li-ion Battery Pack and Charger.

The E-BikeKit 750-1000w geared conversion kit is powered by an internal 5:1 planetary gear hub motor with a clutch. The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with “start/stop” riding), has more starting torque, and has greater hill-climbing ability than a direct-drive motor of equal power rating. The motor is also smaller in diameter for increased stealth and 3.4 lbs. lighter than the 500w direct-drive.

Dropout Spacing: This hub is spaced to 170mm w/ 15mm disc-offset for Fatbike rear wheels. We can also space it to 190mm for use without a disc brake. If you have a bike that uses a rear disc brake and 190mm spacing, we can include disc rotor shims and screws to help line the disc up for 15mm disc offset.

Who’s it for? This premium electric bike conversion kit system is for those that want the best of the best in performance, efficiency, weight, stealth, and speed. The top speed is 26 mph! There is a 300 lbs total load limit so if you plan on more than that, look to a heavy-duty system.

This kit uses a motor designed especially for fat bikes. It provides 170 – 190mm OLD rear spacing (using spacer-washers) and 15mm disc-offset (170mm) – add 10mm disc rotor spacer (not included) and extra-long screws for 15mm disc-offset with 190mm.

Chainline is 64mm. Add our freewheel spacer for a 75mm chain line.

Learn More: Top 25 FAQ | Front vs Rear Wheel | Compatibility | Pedal Assist Compatibility

Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via UPS Hazmat and require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.

Questions? Call Toll-Free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday 9 am – 5 pm EST. Outside of business hours get help fast via e-mail.





Motor Specs

Brand: Electric Bike Technologies, Inc.
Type: Internally Geared (Brushless, and disc brake compatible) Fat bike motor
Power: 750w Nominal / 1000 @ 48v
Max Torque: 84Nm @ 48v
Max RPM: 320 @ 48v
Cable: 8″ Axle Exit, 3-Phase / 5 Hall Effect
Connector:Round 8-Pin 13/32″ (10.4mm)
Weight: 17 lbs (4.26 kg)
Warranty: 1 Year (up to 48v w/ 300 lbs max load)

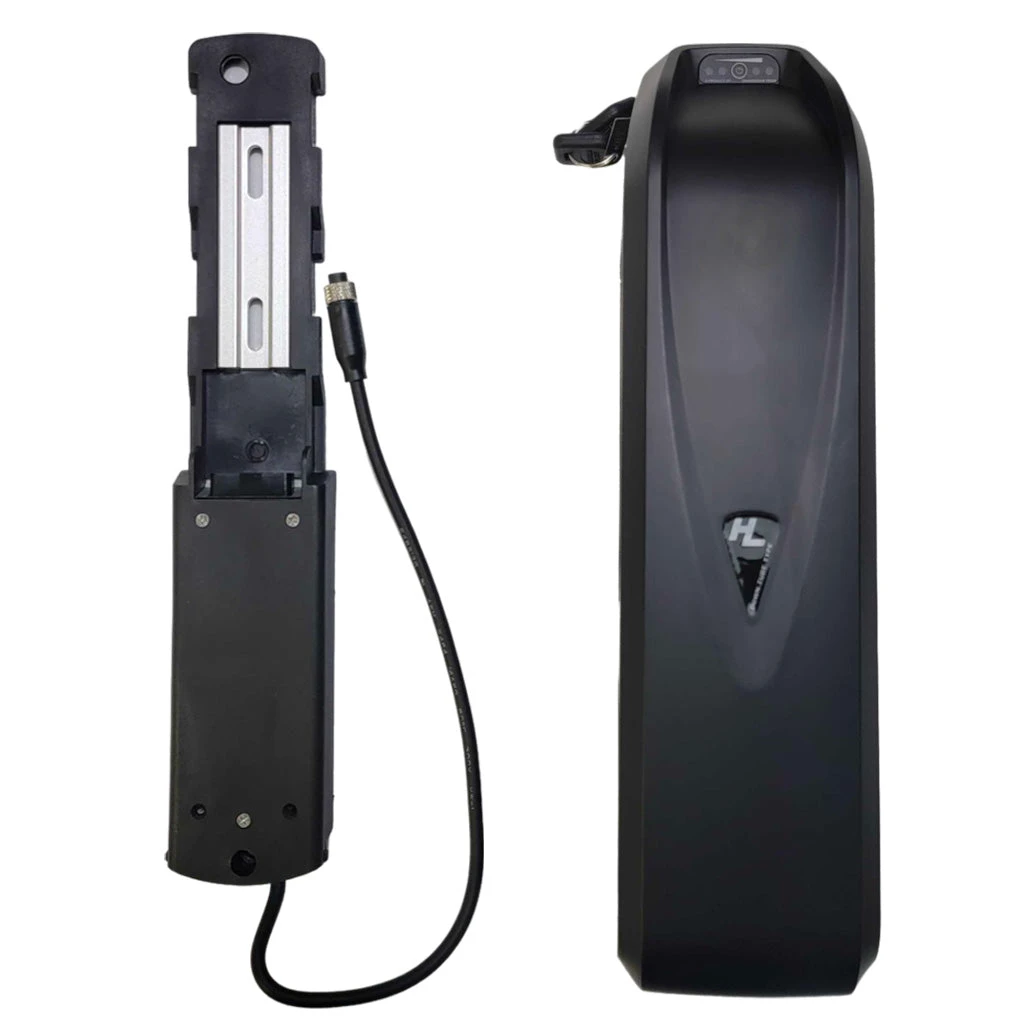

Battery Specs

Range: 15-30 Miles (Based on riders weight, input and terrain contingent)
Charging Time: 15Ah Pack = 5 Hours / 3Amp Charger
Nominal Voltage: 48v
Nominal Capacity: 15Ah (0.2C)
Battery Energy: 720Wh approx.
Dimensions: 14in x 3.5in x 5in (356mm x 89mm x 127mm) approx.
Total Weight: 10.125 lbs (4.6 kg)
Cell Assembly: 18650-3.6v-13S4P
Life Cycles: 500-800 Cycles
Max. Continuous Discharge: 16A
BMS Protection Current: 20A
Discharge Cut-Off Voltage: 37.5v
Max Charge Voltage: 54.6v
Inner Resistance: < = 230mΩ
Operation Temperature Range: Charge: 0°C – 113°F / Discharge: -68°F – 140°F
Storage Temperature: 0°C – 104°F (Extended Storage: 59°F – 77°F)
Battery Case Material: Plastic
Battery Case Material: Plastic
Limited Warranty: 1 Year
Certificates: UN38.3; MSDS; Cells DMGC INR 18650-26E UL1642,2580

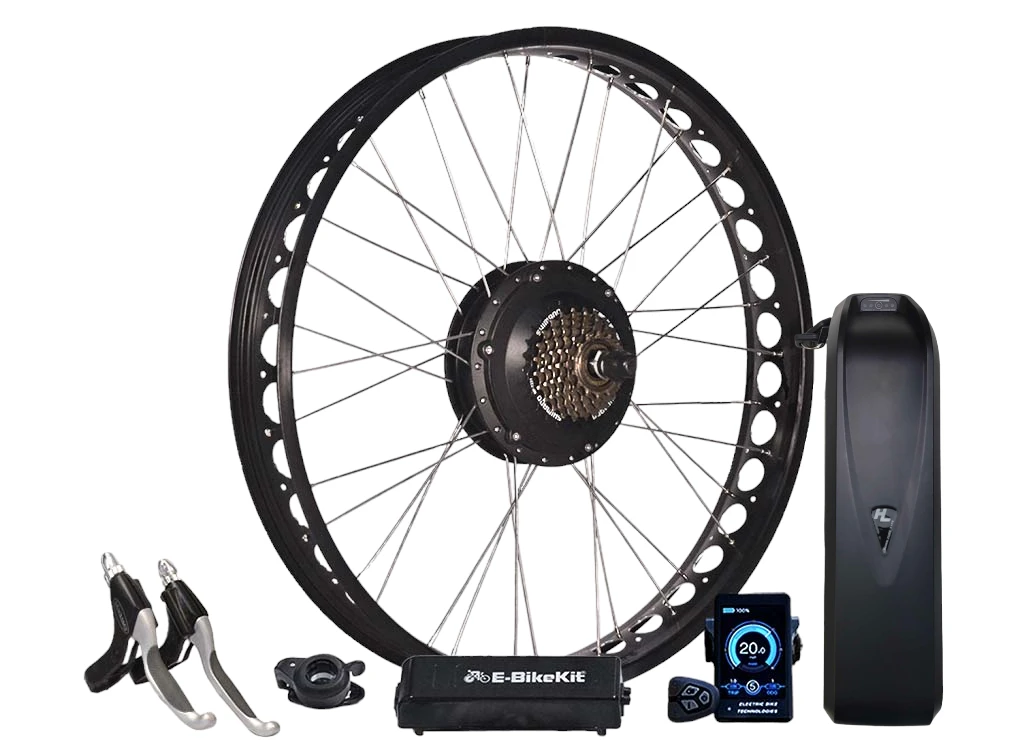

Includes

Every E-BikeKit conversion kit comes with all of the parts you’ll need for your conversion.
• USA Hand-Built Wheel with a Disc-Brake Compatible Hub Motor
• 48V Compatible 22Amp 12FET Controller
• Programmable LCD Dashboard
• PAS 12-Magnet Split Disc
• PAS Sensor Left Side Mount (Right side mount by request only)
• Thumb or Split-Twist Throttle
• Left & Right E-Brake Levers
• Motor Cable
• 3-to-1 Accessory Cable
• Battery Wire Harness (Only included if there’s no battery kit)
• Freewheel (Only for rear E-BikeKits)
• Battery and Charger
• Zip Ties, C-Washers, and Torque Arms in Every Kit!
