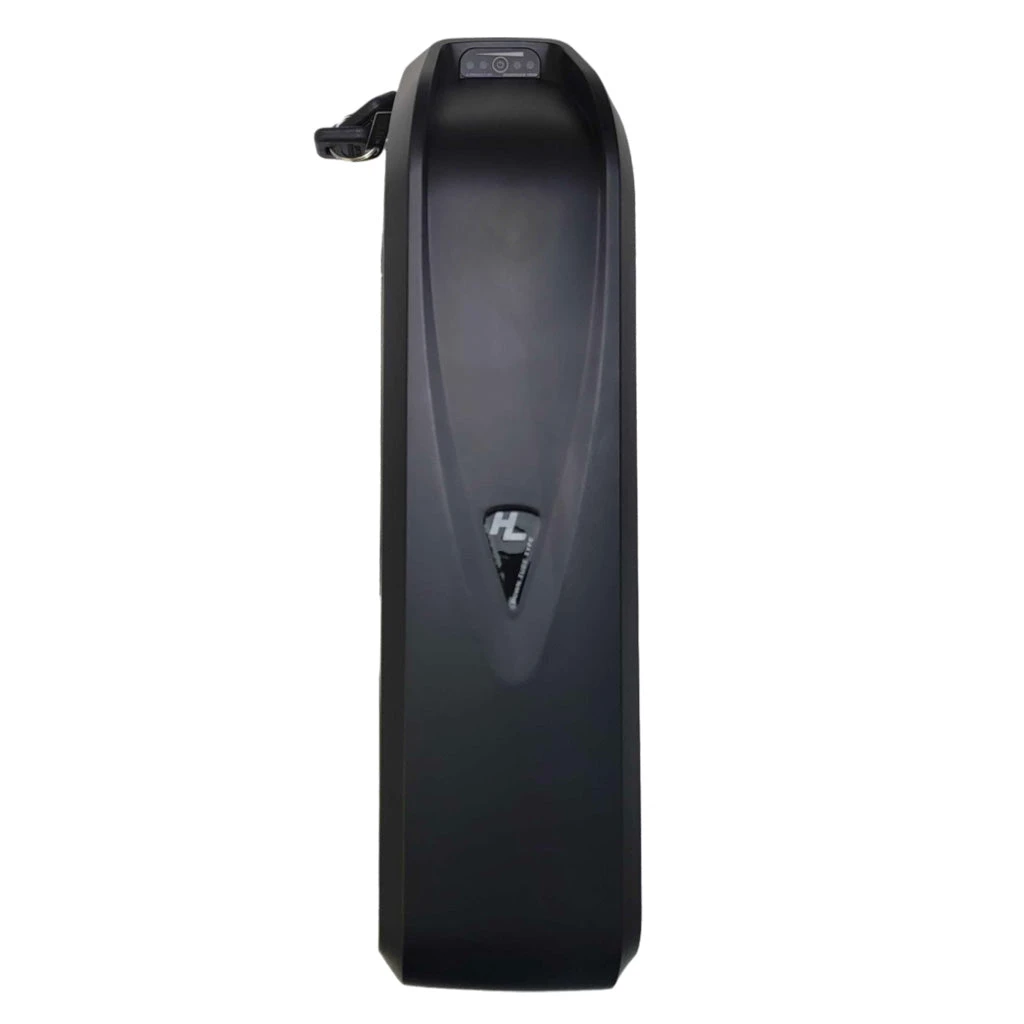

48v 15Ah Li-ion Downtube E-Bike Battery

• Downtube Style with key-lock mount

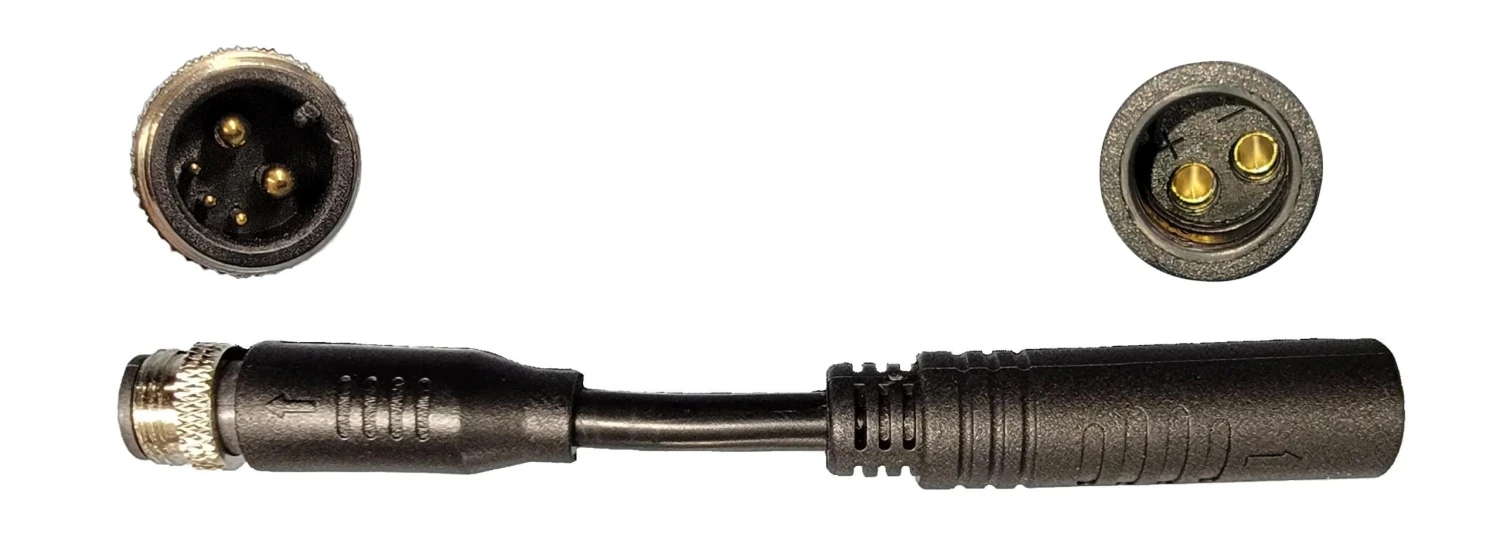

• New 5-pin twist connector to connect to latest E-BikeKit Controllers.  If your current controller has a 2 prong male connector, you will need an adapter.



Latest-model universal mounting and side-release.





Description

E-BikeKit 48v 15Ah Li-ion Downtube E-Bike Battery Pack.

INCLUDES 3 AMP CHARGER

These Li-ion batteries are our longest-lasting E-Bike battery with an expected 500-800 life cycles (from full to empty).

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and may require a signature for delivery. You may receive your kit, battery, and possibly the battery rack (if applicable), on separate days.

Questions? Call us toll-free at 1-866-882-3245 and an experienced professional can assist you. Monday – Friday from 9 am to 5 pm EST. Outside of business hours get help fast via email.





Battery Specs

Top Speeds: 26 MPH w/ 500w Geared “Performance” Motor / 20 MPH w/ 500w Direct-Drive “Heavy-Duty” and Trike Motor
Range: 15-30 Miles (Based on riders weight, input and terrain contingent)
Charging Time: 15Ah Pack = 5 Hours / 3Amp Charger
Nominal Voltage: 48v
Nominal Capacity: 15Ah (0.2C)
Battery Energy: 480Wh approx.
Dimensions: 14in x 3.5in x 5in (356mm x 89mm x 127mm) approx.
Total Weight: 10.125 lbs (4.6 kg)
Cell Assembly: 18650-3.6v-13S4P
Life Cycles: 500-800 Cycles
Max. Continuous Discharge: 16A
BMS Protection Current: 20A
Discharge Cut-Off Voltage: 42v
Max Charge Voltage: 54.6v
Inner Resistance: < = 230mΩ
Operation Temperature Range: Charge: 0°C – 113°F / Discharge: -68°F – 140°F
Storage Temperature: 0°C – 104°F (Extended Storage: 59°F – 77°F)
Battery Case Material: Plastic
Limited Warranty: 1 Year
Certificates: UN38.3; MSDS; Cells DMGC INR 18650-26E UL1642,2580
